Planning the entire line: construction methods and engineering techniques

netzwerkarchitekten / Schüssler-Plan

The task and its implications for the city

The new Wehrhahn Line augments and optimizes the existing subway network, and it improves access to the city center from the eastern and southern districts. The line runs beneath the central shopping district and the inner city development between Schadowstrasse, Berliner Allee, and Königsallee, and under the heritage Art Nouveau department store Kaufhof on the Kö, joining up with the existing transport hub at Heinrich Heine Allee. This mainly underground transportation system provides smooth  and barrier-free transportation for more than 50,000 passengers a day. It also underpins the interplay between private and public transport by significantly reducing the road traffic above, so the completion of the Wehrhahn Line offers passengers better, faster and more egalitarian mobility. But not only that: it also opens up new options for urban design at ground level. For instance, the Kö-Bogen project was only made possible by relocating the local transport service underground – thereby allowing the tram lines on Jan-Wellem-Platz to be removed.


Project history

In September 2000, the Ingenieurgemeinschaft Wehrhahn-Linie – IGW was commissioned as a JV to handle the planning of this major transportation infrastructure project, with Schüßler-Plan as lead managers. This was the result of a European-wide tender. The state capital Düsseldorf was the developer and the Municipal Dept. of Transportation Management coordinated all the client-side activities and assumed overall responsibility.
The scope of IGW project planning services included the civil engineering works and transportation facilities, as well as structural engineering. Based on the study of several possible solutions at the preliminary design stage, the decision was made to use a ‘shield tunneling’ method for the track, combined with a cut-and-cover method for the stations. This approach was preferred since it ensured only minimum disturbance at ground level and employs construction methods that are suitable in an urban context.

Tunneling,

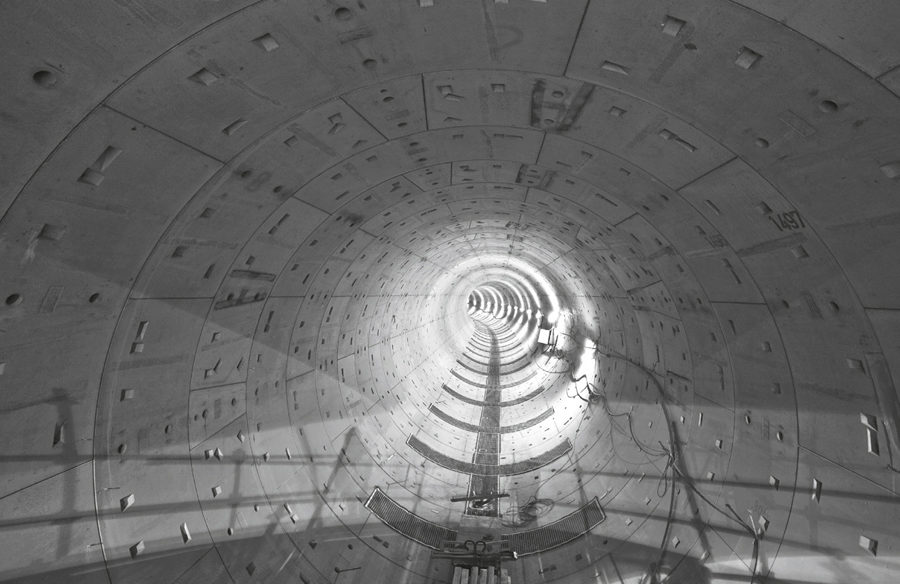

 segment warehouse, each ring piled, length 1.50 m, Photo: Susan Feind
Tunneling, segment warehouse, each ring piled, length 1.50 m, Photo: Susan Feind


In 2001, the City of Düsseldorf held a pan-European architectural competition for the design of the Wehrhahn Line’s subway stations. A mandatory requirement for participation in the contest was that architectural practices and artists should enter as a team.
From a field of some 70 renowned applicants, the architects netzwerkarchitekten , together with the artist Heike Klussmann pre-qualified, and then emerged the winners. The competition remit and the subsequent planning contract involved designing the stations, as well as the two ramped structures leading from track level up to the surface.
Following the architecture competition, netzwerkarchitekten were commissioned to oversee the task of architectural project planning, including the special responsibility for its impact on the geometry of the shell of the civil engineering structures. In a subsequent competition, five additional artists were chosen to expand the number active on the project.
During on-site construction work, senior staff at Schüßler-Plan complemented the municipal project team for site and construction supervision. netzwerkarchitekten were responsible for supervising the artistic contributions.
Following planning approval and some preparatory work, on-site construction started in 2008 with work on pipelines and sewers, as well as special foundation works for the stations and their entrances. In 2010, tunnel construction officially commenced. Tunneling began at the southern section in Bilk, and within two years the tunneling work was all but finished. From January 2013 onwards, in parallel with the construction that was taking place in the final tunnel section between the Kaufhof an der Kö and the existing Heinrich Heine Allee station, installation of the operational facilities started in areas where the tunnel was already complete, as well as final work on the tracks.
From this point onwards, until the line was commissioned in February 2016, netzwerkarchitekten – working in collaboration with the six artists – moved ahead with the architectural work; at the same time the operational facilities were installed at the stations.



Special engineering and constructional features
Tunnel construction


IGW had already specified in the initial planning that the tunnel should be constructed mainly in a shield-drive tunneling process and thus the work essentially took place underground. In shield tunneling, a tunnel-boring machine works its way forwards underground. The tunnel-boring machine is driven forward by the cutter wheel eating into the earth ahead of it.
In Düsseldorf, the so-called ‘hydro-shield process’ was the method chosen for excavating and propping. A bentonite slurry reinforced the ground in front of the cutting wheel and then mixed with the soil before being pumped out of the tunnel using a suction line. The mix was pumped into a separation chamber, where the bentonite was removed and then supplied back to the bore head. The residual soil was used as landfill. Protected by the shield tunneling machine, the tunnel evolved  one ring at a time from single-wall pre-cast lining segments. In this case it consisted of eight ring segments, each 45cm thick. As it progressed, the shield tunneling machine levered itself on the previous ring and thrust the shield body forward by the length of one ring (on the Wehrhahn Line this was 1.5 meters), simultaneously excavating soil as it moved. The interstitial space between the outer surface of the tunnel and the surrounding soil was pumped full of mortar.
The entire 2.3 kilometer length of shield tunneling was divided into two sections – southern and eastern – and these were constructed the one after the other using the same tunneling machine between March 2010 and December 2011. After the southern section was finished, the machine was dismantled in a target shaft south of the old city center, and then transported to the eastern starting shaft, where it was reassembled.
Owing to the fact that low-floor subway cars were being used for the first time in the Wehrhahn Line tunnel, special requirements regarding the tunnel’s geometry had to be fulfilled, with respect to the continuous escape routes at the sides, so it was decided that the tunnel cross section would require a shield with an external diameter of 9.5m and and internal one of 8.3m.

Cover construction, Photo: Implenia / Susan Feind
Cover construction, Photo: Implenia / Susan Feind


Station construction work

In order to keep interventions in the inner city area to a minimum especially along Düsseldorf’s chic Königsallee and the shopping zone on Schadowstrasse all the stations were built using the cut-and-cover method. This involves first sinking vertical diaphragm walls and columns into the ground on one side of the road, then opening up the adjacent road section, into which a horizontal concrete lid is cast, supported on the diaphragm walls and columns. This lid then forms the roof of the new station. During this period, traffic continues to flow on the unaffected side of the road. As soon as the intervention is finished and the surface covered over, the same procedure is then carried out on the other side of the road, and traffic is redirected onto the newly completed surface. Only after the concrete lid is finished, can work start underground on constructing the respective station. Traffic flow is thus maintained throughout the construction period and disruption for residents and businesses kept to a minimum.
The tunnel boring machine’s cutting wheel not only removed the earth to create the track bed between stations. It also cut a 80-120cm thick circular slice out of the concrete diaphragm walls that ultimately surrounded the stations. Having thread the shield tunnel boring machine through the protective construction, excavation continued under the lid – which functioned as bracing – allowing a stabilizing concrete structure to be put in place.

View of ascended tunnel, photo: Implenia / Susan Feind
View of ascended tunnel, photo: Implenia / Susan Feind


Underground construction work below Kaufhof an der Kö

One exception to the process described above was the construction of the subway station at Heinrich Heine Allee, located under the heritage-listed Kaufhof building. A large portion of this station lies just below the foundations of this Art Nouveau department store. To prevent the occurrence of even the smallest amount of subsidence damage caused by tunnel-related construction work, a section some 70 meters long was created by a mining method that uses temporary freeze wall protection. In this process, soil below ground level is frozen by means of refrigerating lines. A 2.5cm thick body of ice stabilizes the ground, simultaneously sealing the construction work against any encroaching ground water. Within this stable frozen mass, tunnel tubes, openings, and the transverse sections of stations can effectively be carved from inside. A stabilizing concrete construction is then introduced which, as soon as the ground thaws out, absorbs the compressive forces of the earth.

Tunneling, excavation from the Benrather Straße excavation pit, photo: Implenia / Susan Feind
Tunneling, excavation from the Benrather Straße excavation pit, photo: Implenia / Susan Feind


Fire protection

In case of emergency, two smoke ventilation openings at each end of the 90-meter long platform provide natural smoke extraction to both the tunnel section as well as the train station. The smoke ventilation openings are located at the highest geometric points of the transition zones in order to prevent smoke build-up. Smoke curtains at the entrances to circulation routes leading up to concourse level shut down in an emergency to a height of 2 meters above the platform level, ensuring the safe evacuation of passengers as well as mandatory smoke-free entrances. Openings created between the incision areas and platform level are enclosed by smoke-resistant glass, and entrance areas that lie above the tracks boast F90 fire-resistant glass. These human safety measures also protect the substance of the building to a certain degree. In case of emergency, if a fire were to break out, these fire containment measures would also effectively reduce the amount of repair work required.

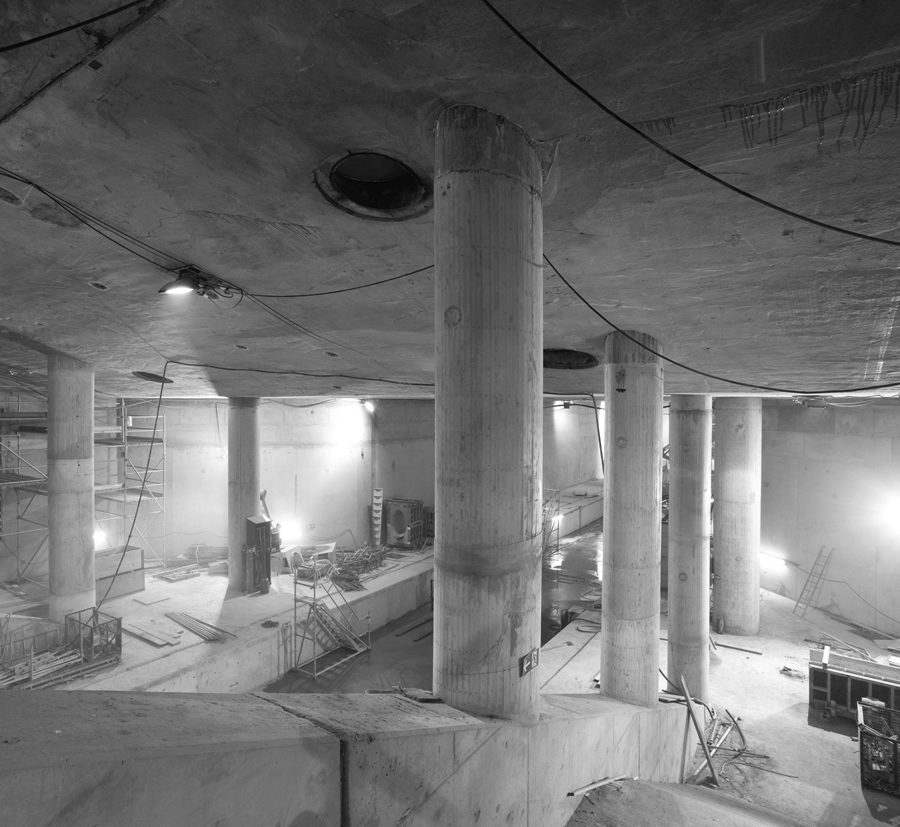

View of the cover construction, subterranean excavation with demolition of the tunnel, photo: Implenia / Susan Feind
View of the cover construction, subterranean excavation with demolition of the tunnel, photo: Implenia / Susan Feind


Project completion: in time and in budget

Both the planning and construction phases of the Wehrhahn Line were achieved largely in time and in budget. Over the course of the anticipated eight-year program construction work was only postponed when archaeological or culturally significant findings came to light during the special civil engineering and excavation work. This major downtown construction project was well received by the public thanks to a high degree of transparency throughout the project and the consultation of a wide swathe of the general public in each phase. Efficient project organization, together with the integrated collaboration between by the various disciplines involved in the project from planning to inception meant that, in February 2016, Düsseldorf was able to successfully launch its largest downtown transportation project to date.
